User Settings

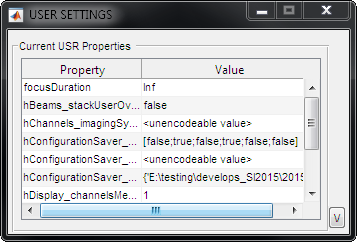

USER SETTINGS Panel
Description
This dialog is used to edit and select parameters in the USR configuration file.
Controls
Buttons
Button |
Description |
|
Exposes/Hides the Specify User Property Set table. |

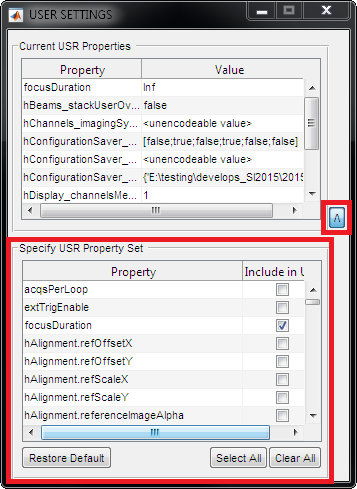

Expanded User Settings Panel
Current USR Properties Table
Table Column |
Description |
Property |
The names of user settable properties. These are exposed through the class and are saved in the USR configuration file. |
Value |
The current value of the corresponding property. Changes here will immediately be reflected in corresponding parts of the ScanImage® GUI. These can also be interrogated from the Matlab command line. |
User Property Set Table
Column |
Description |
Property |
List of all modifiable settings. |
Include in USR Settings |
If checked, the setting will be saved with the USR Configuration and may be edited in the Current USR Properties Table. |
Command Window
You can also retrieve or set User Settings from the command window of matlab, like so:
Retrieve:
1>> hSI.hBeams.directMode
2
3false
Set:
1>> hSI.hBeams.directMode = true
2
3true
