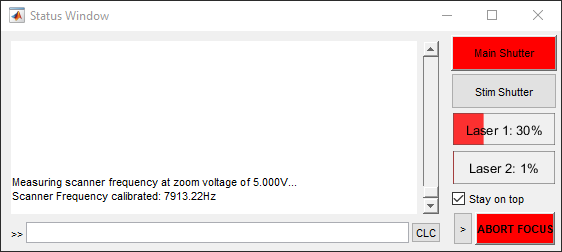

Status Window

Shutter Indicators	Show the current status for each shutter. Color Status Red Shutter Open Gray Shutter Closed Tip Clicking on the shutter indicator toggles the shutter. Warning The ScanImage® status window shows the command signal sent to the shutter. The shutter does not necessarily obey the command signal as expected. Use the appropriate laser safety measures when operating the microscope.
Beam Power Indicators	Shows the maximum output power percentage for each beam modulation device.
Status Indicator / AbortButton	Shows the current ScanImage® acquisition status. Icon Clicking this button at any time aborts the current acquisition, closes all shutters and sets all beam powers to zero.
Stay on top	Keep the status window on top of other windows.
Command Window Prompt	Enter a matlab command and hit enter to execute the command.
Command Window Output	Mirrors the Matlab command window. Double click in the command window output to open the matlab command window.
CLC	Clear the Matlab command window.
<	The status window automatically hides the command output if the window is unselected. Use the < button to keep the command output open.

Note

The Status Window automatically hides the command window ouput when the window is not selected. Use the < button to pin the command window open and use the Stay on top checkbox to keep the status window on top of other windows.
