Resonant Scanner

A resonant scanner is scanning device that oscillates the beam-steering mirror in a sinusoidal motion. The position of a resonant scanner cannot be directly controlled. Instead, the resonant scanner generates an end of line trigger (HSYNC), from which the current position of the scanner can be inferred.

A resonant scanner typically has the following control signals:





From scanner

Digital signal that indicates the completion of one scan period (forward line and backward line)


To scanner

Analog voltage to adjust the amplitude and therefore the width of the scan

Enable (optional)

To scanner

Digital control scanner that enables/disables the scanner

To learn more about image formation with a resonant scanner, visit the Resonant Scanning Concepts.

Device Compatibility

The Resonant Scanner driver is nonspecific to any model of resonant scanner. The most commonly used resonant scanners are Cambridge Technology CRS Series Resonant Scanners

These models of resonant scanner are often incorporated into a scanhead which is sold as a set of scanners and a controller tuned specifically to the scanhead.

Hardware Config

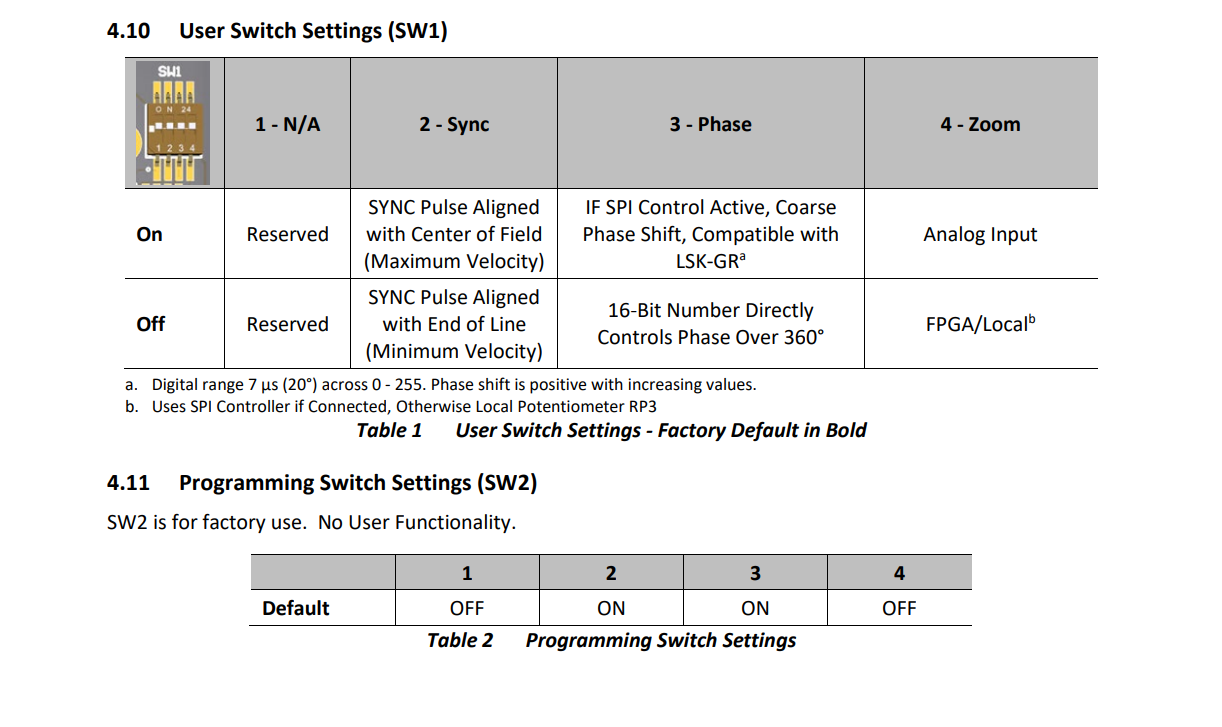

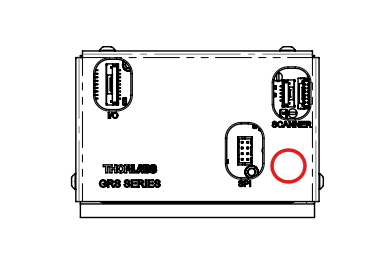

Connect the resonant scanner or scanhead to the controller.

If using a vDAQ:

  • Choose a free analog output channel to connect to the controller Zoom input via BNC cable.

  • Choose a free digital input channel to connect to the controller Synchronization output via BNC cable.

  • If the controller features an enable/disable pin, connect it to a digital output terminal using a BNC cable (optional).

If using an NI hardware:

  • On an X-series DAQ, connect the HSYNC signal to an PFIx terminal.

  • On an X-series DAQ, choose a free analog output channel to connect to the controller amplitude command input.

  • On an X-series DAQ, connect the controller enable/disable pin to an PFI terminal (optional).

If no other scanners are to be plugged in to the controller, then the controller may be connected to power and turned on.

Software Config

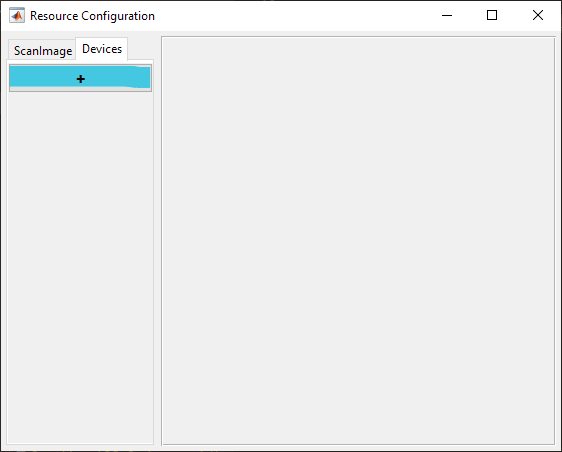

From the Resource Configuration window, under the Devices tab click the add device “+” button.


Select Scanner from the sidebar and then Resonant Scanner and click Add. Assign it a name and click OK.

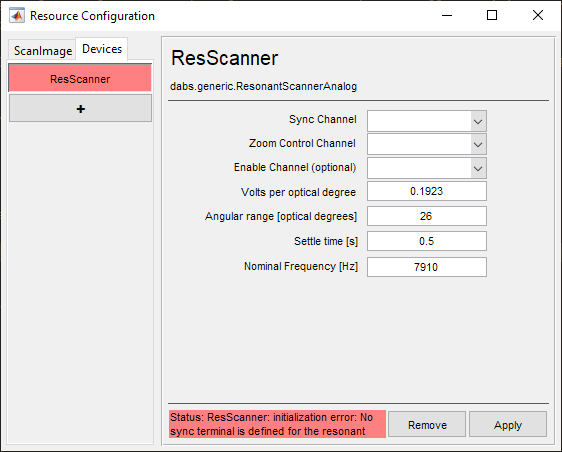

In the window below, configure according to the installed resonant scanner.


Sync Channel

The channel for receiving synchronization pulses which occur once per period of oscillation.

Zoom Control Channel

The channel for controlling the amplitude of the scanning

Enable Channel (optional)

An optional port for enabling or disabling the resonant scanner.

Volts per optical degree

The scaling factor to convert from command voltage to optical degrees

Angular range [optical degrees]

The angular range that a beam sweeps as the mirror scans from the CCW and CW extents of its travel.

Settle time [s]

The time to wait at the beginning of an acquisition to wait for the resonant mirror to reach a stable operating oscillation and begin frequency measurement.

Nominal Frequency [Hz]

A first guess as to the frequency of the resonant scanner. If the measured frequency at the start of an acquisition is to different from this nominal frequency, then an error message will display.


These values are in optical degrees - which is 2x the mechanical rotation angle of the scanner shaft, because of the laser reflection.



Angular Ranges at Zoom=1

Zoom 1 is automatically defined as a square scan of the smaller of the two scanner angular ranges


It is permissible to use the full angular range of the larger of the two angular ranges, via the ROI/Stimulus Group Editor dialog

Below are recommended settings for various models of resonant scanners


Cambridge Technologies CRS8K

Cambridge Technologies CRS12K

Volts Per Optical Degree

5V / 26° = 0.1923 V/°

5V / 10° = 0.5 V/°

Angular Range [Optical Degrees]



Settling Time [s]



Nominal Frequency [Hz]




The amplitude of a resonant scanner does not always change linearly with the control voltage. Since the galvanometric mirror for the scan in y-direction has a linear response, this can lead to an image distorton in x-direction at different zoom levels.

ScanImage® has a built in tool to correct for the non-linear amplitude of the resonant scanner. To access this feature, select the ‘LUT’ button on the resonant scanner widget:

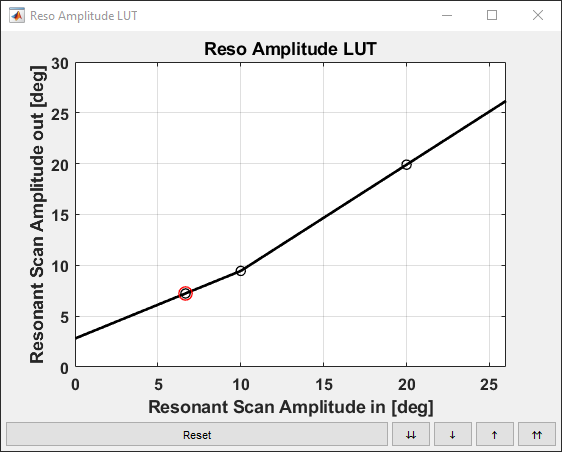

This will show the Resonant FOV to Voltage Calibration Curve, which allows you to manipulate the zoom-to-voltage lookup table for the resonant mirror. After enabling the feature with the checkbox in the lower left corner, start a focus and adjust the zoom level until the distortion becomes visible. In the calibration window, add a control point and adjust the control point’s position using the arrow buttons until the distortion is removed. Repeat the process for multiple zoom levels.


The three knees in the lookup table adjust the voltage for zoom levels 1x, 2x and 3x to compensate for the non-linear amplitude response of the resonant mirror.
