Alignment Controls

ALIGNMENT CONTROLS Panel

Overview

The ALIGNMENT CONTROLS panel is used for various image alignment purposes including some of the following common tasks:

• Physical alignment of parallel scanning paths

• Calibration of resonant image aspect ratio at various zoom levels

• Registration between X galvo and resonant mirror for RGG scanners

• Generating affine transformation matrices for fine parallel scanner alignment

• Day to day sample alignment

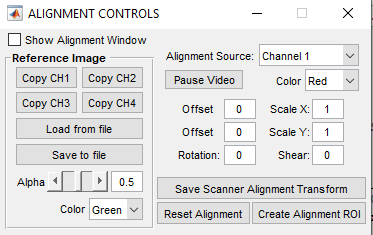

Main Panel

Show Alignment Window	Shows the alignment image window. Uncheck this when alignment is not in use to avoid performance impact during imaging.
Alignment Source	Specify which image channel to use as a video stream.
Pause Video	Pause the video stream at current image.
Color	Select color of video stream.
Offset, Scale, Rotation,Shear	Apply offset, scaling factor, rotation, and shear to the video stream.
Save Scanner Alignment Transform	Generate an alignment relationship for the currently active scanner from the scanner used to create the reference image using the offsets, scaling, rotation, and shear.
Reset Alignment	Reset scanner alignment relationships for all scanners to default that assumes perfect alignment using angular ranges from MDF settings.
Create Alignment ROI	Create an ROI that can be imaged by all scanners and enter multiple ROI mode in order to perform alignment

Reference Image Panel

Copy Channel	Copies the image from the selected channel video stream into the reference image buffer
Load from file	Loads reference image from a saved file
Save to file	Saves current reference image to file
Alpha	Adjusts alpha blending level between reference image and video stream
Color	Sets color of reference image
