Thorlabs MCM 3000

Hardware Config


Never connect or disconnect any cables with the 1U Control rack switched on.


Instructions here are no substitute for instructions that can be found in the product manual. Follow at your own risk.

Connect the 1U rack controller to the motion card via 25 way D-type connector cable. Use supplied cables to connect the card to the stage; There should be as many cables as there are axes to be controlled.

Connect the USB to the computer.

Use an AC power cable to connect the controller to a power outlet.

Flip the power switch on the front of the 1U rack controller.

Software Config

In ScanImage, open the Resource Configuration window from the startup dialog or from the Main Controls window under File>Configuration.

  1. From the Resource Configuration window, click the “+” button. Select Motor Controller from the sidebar, and select Thorlabs MCM3000. Give it a name and continue.

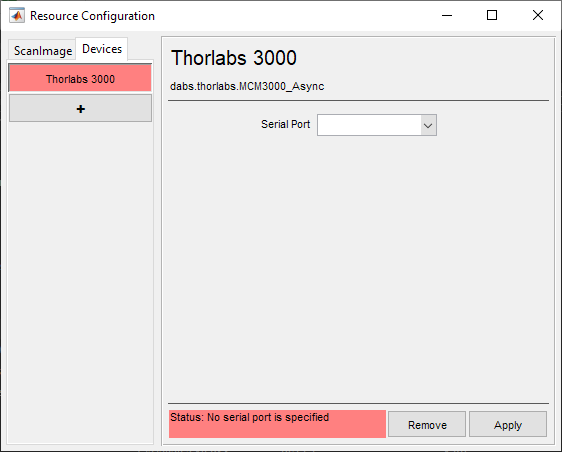

  2. A window like shown below will be displayed. Below the image is a description of each of the configuration parameters


Serial Port

Select the COM port assigned to the computer


The COM port can be determined by powering off and disconnecting the USB cable for the controller, and then watch the windows device manager under Ports (COM & LPT) while reconnecting and powering on the controller to see which COM Port is established.

Once the device has been configured, it can be added to the ScanImage® imaging system via the left pane of the Resource Configuration window under the ScanImage tab after clicking the SI Motors button. This will reveal a page (see below) that will allow each of the axes to be configured as a MCM3000 axis.

Scaling factors are provided in addition to the configuration settings.
