Display Tab

Feature: Acquisitions

Scan Phase Controls

Control	Description

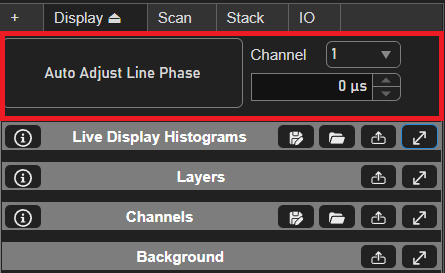

Auto Adjust Line Phase	Automatically detects and corrects the scan phase offset by analysing the channel viewport.
Channel Selection Dropdown	Selects the display channel for line phase adjustment.
Manual Line Phase Adjustment	Spinner control to optionally manually adjust the scan phase. (See Scan Phase Adjustment).

Histograms

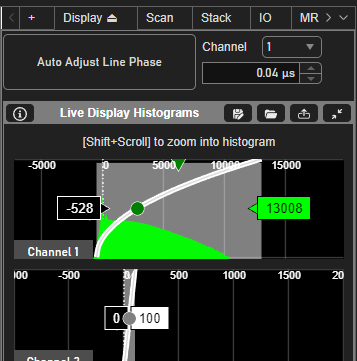

Histograms for live display modes.

If no background images are selected, the default controls for the histogram panel allow for adjusting the contrast, transparency, and primary color of the live image in the viewport.

Control	Description

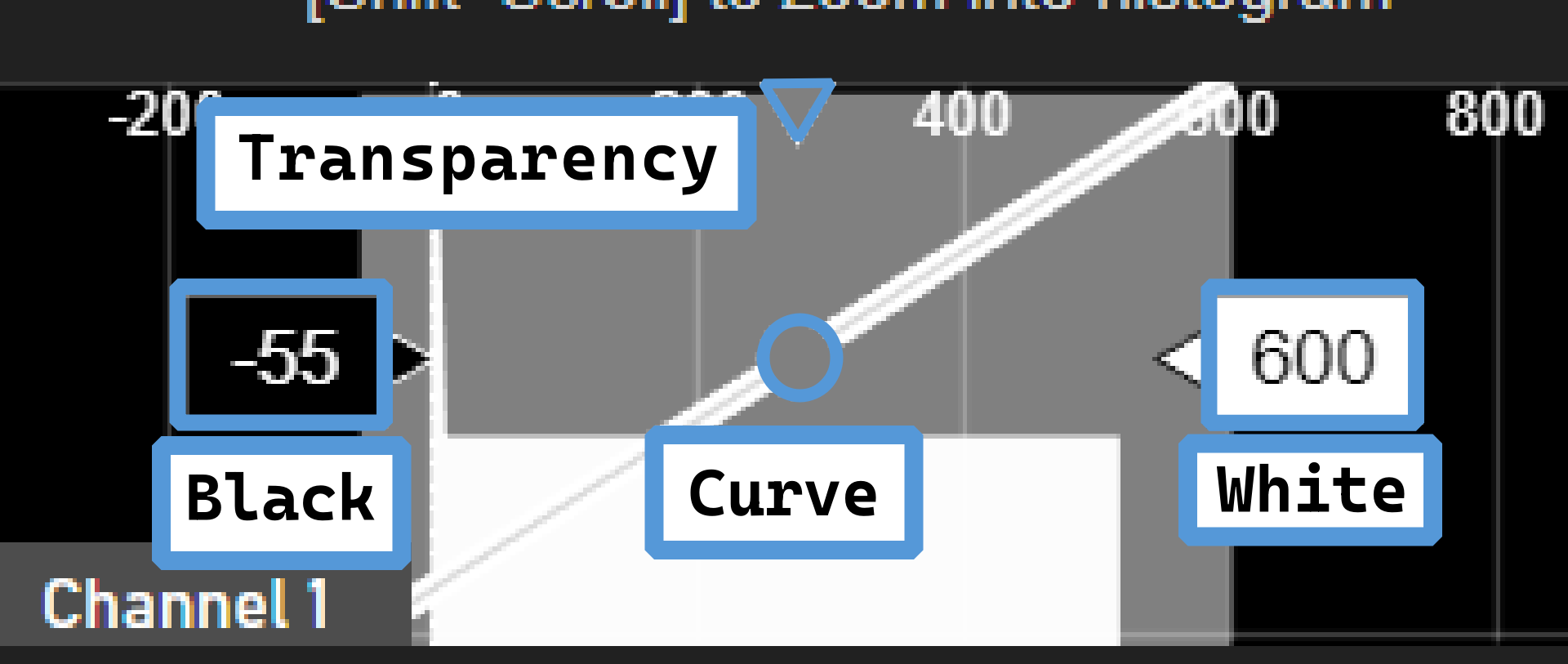

Transparency	Controls the alpha of the channel. The lower the node is placed, the lower the visibility of the channel compared to the other channels.
Black/White	Controls the black/white limits of the image. Pixel values below the Black node will be displayed as all black, and pixel values above the White node will be displayed as all white. Tip Changing the histogram color will tint the live image white values to the chosen color.
Curve	Adjusts the interpolation curve between the black and white contrast limits. Moving the node left or right will bias the display of the image pixel values towards the black or white limits.

Histograms with pinned backgrounds selected.

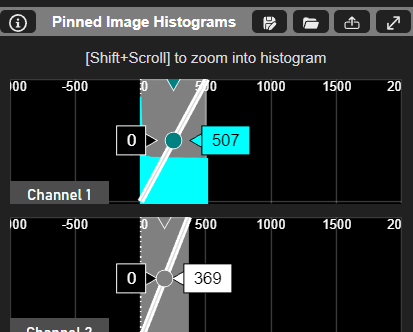

When a background image is selected (See Image Controls), the histogram panel changes to allow for the same contrast, transparency, and color configuration of the image in the viewport as if it were the live image. The controls for the histogram are the same as in the Live Histogram mode but only apply to the selected background image.

Tip

To return to Live Histogram mode, hit the esc key.

Tip

To match the viewport color to the configured histogram channel color of the currently selected image, use the “Set Color” button under Image Controls

Layers

The Layer control panel allows for user control over visibility, interactivity, and locatability of relevant features in the viewport.

Column	Description

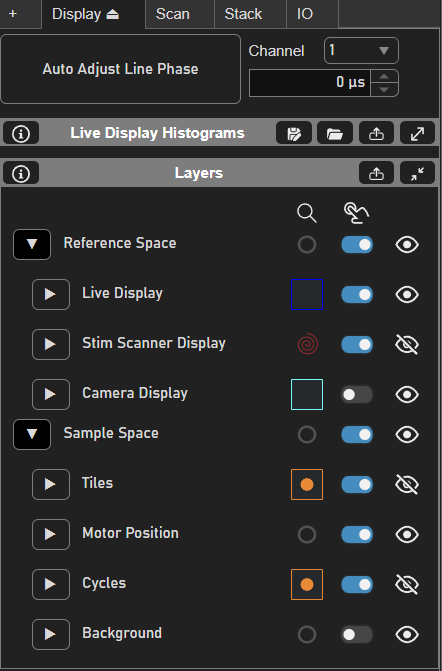

|	Clicking on each icon will focus the viewport camera view on all relevant elements in the space/feature layer.
|	Toggles mouse interactivity of each space/feature layer.
| / |	Toggles visibility of each space/feature layer.

Channels

Column	Description

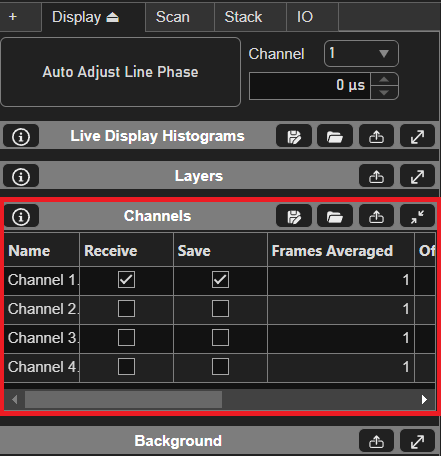

Name	The channel index
Receive	Toggles display of image data on the associated channel in the viewport.
Save	Toggles whether or not the image data associated with this channel is saved when file logging is enabled.
Frames Averaged	The number of frames to average for the associated channel.

Channels Continued

Column	Description

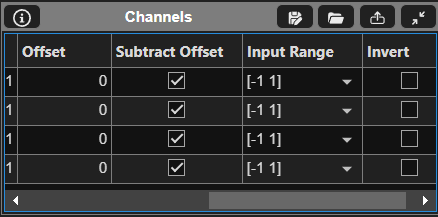

Offset	Applies an offset to all PMT values for the associated channel. (See PMT Calibration)
Subtract Offset	Toggles whether or not to apply the value in the Offset field.
Input Range	A dropdown indicating the voltage range mapping analog values to the digital range on the associated channel.
Invert	Toggles whether high digital values indicate black pixels or white pixels

Background

Image Controls

Image buttons

Image movement controls

Button	Description

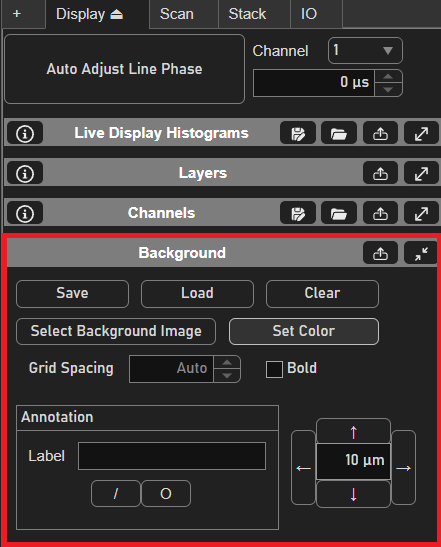

Save | Load	Saves/Loads the current background image to/from file.
Select Background Image	Enables a tool to pin a context image.
Set Color	Synchronizes the current pinned histogram color with all pinned background images.
↑↓←→	Moves the currently selected background image in the given direction for that distance

Grid Controls

Control	Description
Grid Spacing	Sets a constant grid spacing in the viewport. Tip Hit backspace while editing the field to revert the grid space to the default “Auto” spacing size
Bold	Toggles bolding of the grid lines in the viewport.

Annotation Controls

Control	Description
Label	Adds a label annotation to the viewport.
“/” | “O”	Enables a drawing tool for annotating lines and circles onto the viewport.
